Precision Needle Applicator Tip For UV Glue Syringe And HydroFlux Welder Sizes 15awg To 30awg-69351

Name: Precision Needle Applicator Tip For UV Glue Syringe And HydroFlux Welder Sizes 15awg To 30awg-69351
SKU: 12.201.20
Availability: InStock

Original price was: $1.29.Current price is: $0.90.

Required

Clear

SKU: 12.201.20 Categories: Adhesives, Glue, Watchmaker Tools

Secure Payments, Secure Shopping
Secure Shopping with Safe Payments
Shop quality, shop with us.
Buy with Peace of Mind

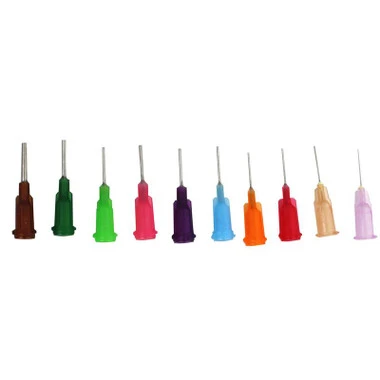

Precision applicator tips for UV glue syringes apply UV glue precisely and accurately. Syringe applicators are composed of a plastic body and stainless steel needle. Tips have 4.25mm diameter tube opening to attach to glue bottle and 0.50″ inch (12.7mm) tube length. Exposed needle length is approximately 11.5mm, overall applicator length is approximately 30mm. Tips are color coded to identify sizes easily and are available in 30 awg to 14 awg (gauge) sizes. Sold per piece (individually). UV glue and other adhesives sold separately. For complete tip size listings (inside/outside needle diameter) see table below.

UV glue applicator tips allow for ultra precise glue dispensing
Tips are made of plastic tubes and stainless steel needles
Tip tubes contain UV filters to prevent glue in tube from activating
Tips work for nearly all fluids, adhesives and solvents
Color-coded for easy identification of size
Tube length: 0.50″ inches (12.7mm)
Exposed needle length: 11.5mm (approx.)
Overall tip length: 30mm (approx.)
Tube opening diameter: 4.25mm
Tip included with our UV Glue (12.201 & 12.202) is 25awg – Red
25 gauge (red) needle size: ID – 0.010″ / 0.25mm | OD – 0.020″ / 0.51mm
UV glue sold separately


Required

14 gauge / Olive / 1.60mm (0.063"), 15 gauge / Amber / 1.37mm (0.054"), 16 gauge / Light Pink / 1.19mm (0.047"), 18 gauge / Green / 0.84mm (0.033"), 20 gauge / Pink / 0.61mm (0.023"), 21 gauge / Purple / 0.51mm (0.020"), 22 gauge / Blue-Gray / 0.41mm (0.016"), 23 gauge / Orange / 0.33mm (0.013"), 25 gauge / Red / 0.25mm (.010"), 26 gauge / Tan / 0.23mm (0.009"), 30 gauge / Lavender / 0.15mm (0.006")
